1 way TAPs, 5-2400 MHz A-class, F connection. AT series

	AT 108	AT 110	AT 112
Code	0980108	0980110	0980112
Nº of TAP outputs	1	1	1
Band	5-2400 MHz	5-2400 MHz	5-2400 MHz
Return path	5-30 / 5-65 MHz	5-30 / 5-65 MHz	5-30 / 5-65 MHz
IN-TAP loss Freq: TYP/MAX	5-470: 8,0 / 9,0 dB 470-862: 8,5 / 9,0 dB 950-2400: 8,5 / 9,5 dB	5-470: 10,0 / 11,0 dB 470-862: 10,5 / 11,0 dB 950-2400: 10,5 / 11,5 dB	5-470: 12,0 / 13,0 dB 470-862: 12,5 / 13,0 dB 950-2400: 12,5 / 13,5 dB
IN-OUT loss Freq: TYP/MAX	5-470: 1,8 / 2,0 dB 470-862: 1,8 / 2,2 dB 950-2400: 2,2 / 3,0 dB	5-470: 1,5 / 1,7 dB 470-862: 1,5 / 1,8 dB 950-2400: 2,1 / 2,5 dB	5-470: 1,2 / 1,5 dB 470-862: 1,2 / 1,5 dB 950-2400: 1,5 / 1,9 dB
Screening factor	> 100 dB	> 100 dB	> 100 dB

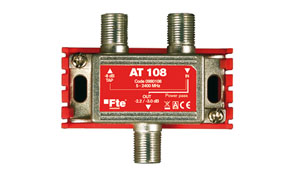

AT 108

	AT 115	AT 120	AT 125
Code	0980115	0980120	0980125
Nº of TAP outputs	1	1	1
Band	5-2400 MHz	5-2400 MHz	5-2400 MHz
Return path	5-30 / 5-65 MHz	5-30 / 5-65 MHz	5-30 / 5-65 MHz
IN-TAP loss Freq: TYP/MAX	5-470: 15,0 / 16,0 dB 470-862: 15,5 / 16,0 dB 950-2400: 15,5 /16,5 dB	5-470: 20,0 / 21,5 dB 470-862: 20,5 / 21,5 dB 950-2400: 20,5 / 22,5 dB	5-470: 25,0 / 26,5 dB 470-862: 25,5 / 27,0 dB 950-2400: 25,5 / 27,5 dB
IN-OUT loss Freq: TYP/MAX	5-470: 1.0/1.1 dB 470-862: 1.0/1.2 dB 950-2400: 1.3/1.6 dB	5-470: 0,8 / 1,0 dB 470-862: 0,8 / 1,0 dB 950-2400: 1,2 / 1,5 dB	5-470: 0,8 / 1,0 dB 470-862: 0,8 / 1,0 dB 950-2400: 1,2 / 1,5 dB
Screening factor	> 100 dB	> 100 dB	> 100 dB

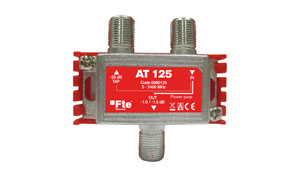

AT 125

2 way TAPs, 5-2400 MHz A-class, F connection. AT series

	AT 210	AT 212	AT 215
Code	0980210	0980212	0980215
Nº of TAP outputs	2	2	2
Band	5-2400 MHz	5-2400 MHz	5-2400 MHz
Return path	5-30 / 5-65 MHz	5-30 / 5-65 MHz	5-30 / 5-65 MHz
IN-TAP loss Freq: TYP/MAX	5-470: 10,0 / 11,0 dB 470-862: 10,5 / 11,0 dB 950-2400: 10,5 /11,5 dB	5-470: 12.0/13.0 dB 470-862: 12.5/13.5 dB 950-2400: 12.5/13.5 dB	5-470: 15,0 / 16,0 dB 470-862: 15,5 / 16,0 dB 950-2400: 15,5 / 16,5 dB
IN-OUT loss Freq: TYP/MAX	5-470: 2.2/2.5 dB 470-862: 2.2/2.5 dB 950-2400: 2.8/3.5 dB	5-470: 2,0 / 2,1 dB 470-862: 2,0 / 2,2 dB 950-2400: 2,5 / 3,0 dB	5-470: 1,6 / 2,0 dB 470-862: 1,8 / 2,0 dB 950-2400: 2,0 / 2,3 dB
Screening factor	> 100 dB	> 100 dB	> 100 dB

AT 210

	AT 220	AT 225	AT 230
Code	0980220	0980225	0980230
Nº of TAP outputs	2	2	2
Band	5-2400 MHz	5-2400 MHz	5-2400 MHz
Return path	5-30 / 5-65 MHz	5-30 / 5-65 MHz	5-30 / 5-65 MHz
IN-TAP loss Freq: TYP/MAX	5-470: 20,0 / 21,0 dB 470-862: 20,5 / 21,0 dB 950-2400: 20,5 / 21,5 dB	5-470: 25,0 / 26,0 dB 470-862: 25,5 / 26,0 dB 950-2400: 25,5 / 26,5 dB	5-470: 30,0 / 31,0 dB 470-862: 30,5 / 31,0 dB 950-2400: 30,5/31,5 dB
IN-OUT loss Freq: TYP/MAX	5-470: 1,0 / 1,5 dB 470-862: 1,0 / 1,6 dB 950-2400: 1,7 / 2,2 dB	5-470: 1,0 / 1,5 dB 470-862: 1,0 / 1,6 dB 950-2400: 1,7 / 2,2 dB	5-470: 1,0 / 1,4 dB 470-862: 1,0 / 1,4 dB 950-2400: 1,6 / 2,0 dB
Screening factor	> 100 dB	> 100 dB	> 100 dB

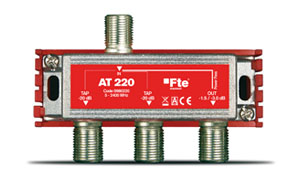

AT 220

4 way TAPs, 5-2400 MHz A-class, F connection. AT series

	AT 412	AT 415	AT 420
Code	0980412	0980415	0980420
Nº of TAP outputs	4	4	4
Band	5-2400 MHz	5-2400 MHz	5-2400 MHz
Return path	5-30 / 5-65 MHz	5-30 / 5-65 MHz	5-30 / 5-65 MHz
IN-TAP loss Freq: TYP/MAX	5-470: 12,0 / 13,0 dB 470-862: 12,5 / 13,0 dB 950-2400: 12,5 / 13,5 dB	5-470: 15,0 / 16,0 dB 470-862: 15,5 / 16,0 dB 950-2400: 15,5 / 16,5 dB	5-470: 20,0 / 21,0 dB 470-862: 20,5 / 21,0 dB 950-2400: 20,5 / 21,5 dB
IN-OUT loss Freq: TYP/MAX	5-470: 2.2/2.5 dB 470-862: 2.2/2.5 dB 950-2400: 2.8/3.5 dB	5-470: 1,6 / 2,0 dB 470-862: 1,8 / 2,0 dB 950-2400: 2,0/ 2,5 dB	5-470: 0,8 / 1,1 dB 470-862: 1,0 / 1,2 dB 950-2400: 1,2/1,5 dB
Screening factor	> 100 dB	> 100 dB	> 100 dB

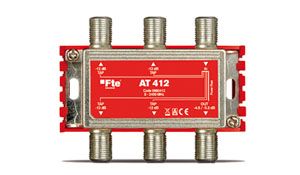

AT 412

	AT 425	AT 430
Code	0980425	0980430
Nº of TAP outputs	4	4
Band	5-4000 MHz	5-4000 MHz
Return path	5-30 / 5-65 MHz	5-30 / 5-65 MHz
IN-TAP loss Freq: TYP/MAX	5-470: 25,0 / 26,0 dB 470-862: 25,5 / 26,5 dB 950-2400: 25,5 / 27,0 dB	5-470: 30,0 / 31,0 dB 470-862: 30,5 / 31,0 dB 950-2400: 31,5 / 32,5 dB
IN-OUT loss Freq: TYP/MAX	5-470: 0,7 / 1,0 dB 470-862: 1,0 / 1,2 dB 950-2400: 1,2 / 1,5 dB	5-470: 0,7 / 1,0 dB 470-862: 0,8 / 1,1 dB 950-2400: 1,0 / 1,3 dB
Screening factor	> 100 dB	> 100 dB

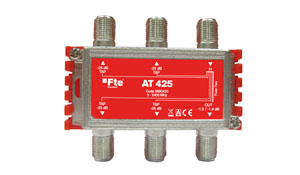

AT 425

6 way TAPs, 5-2400 MHz A-class, F connection. AT series

	AT 616	AT 620	AT 625
Code	0980616	0980620	0980625
Nº of TAP outputs	6	6	6
Band	5-2400 MHz	5-2400 MHz	5-2400 MHz
Return path	5-30 / 5-65 MHz	5-30 / 5-65 MHz	5-30 / 5-65 MHz
IN-TAP loss Freq: TYP/MAX	5-470: 16,0 / 17,0 dB 470-862: 16,5 / 17,0 dB 950-2400: 16,5 / 17,5 dB	5-470: 20,0 / 21,0 dB 470-862: 20,5 / 21,0 dB 950-2400: 20,5/21,5 dB	5-470: 25,0 / 25,5 dB 470-862: 25,5 / 26,0 dB 950-2400: 26,0 / 26,5 dB
IN-OUT loss Freq: TYP/MAX	5-470: 5,0 / 6,0 dB 470-862: 5,2 / 6,0 dB 950-2400: 6,5 / 7,5 dB	5-470: 3,7 / 4,0 dB 470-862: 3,7 / 4,0 dB 950-2400: 4,5 / 5,2 dB	5-470: 3,2 / 3,7 dB 470-862: 3,3 / 3,8 dB 950-2400: 4,0 / 5,0 dB
Screening factor	> 100 dB	> 100 dB	> 100 dB

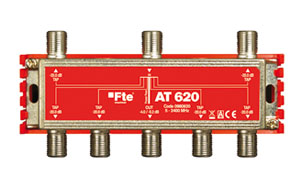

AT 620

8 way TAPs, 5-2400 MHz A-class, F connection. AT series

	AT 816	AT 820	AT 825
Code	0980816	0980820	0980825
Nº of TAP outputs	8	8	8
Band	5-4000 MHz	5-4000 MHz	5-4000 MHz
Return path	5-30 / 5-65 MHz	5-30 / 5-65 MHz	5-30 / 5-65 MHz
IN-TAP loss Freq: TYP/MAX	5-470: 16,0 / 17,0 dB 470-862: 16,5 / 17,0 dB 950-2400: 16,5 / 17,5 dB	5-470: 20,0 / 21,0 dB 470-862: 20,5 / 21,0 dB 950-2400: 20,5 / 21,5 dB	5-470: 25,0 / 25,5 dB 470-862: 25,5 / 26,0 dB 950-2400: 26,5 / 26,5 dB
IN-OUT loss Freq: TYP/MAX	5-470: 5,0 / 6,0 dB 470-862: 5,2 / 6,0 dB 950-2400: 6,5 / 7,5 dB	5-470: 4,7 / 5,5 dB 470-862: 5,0 / 5,5 dB 950-2400: 5,5 / 6,3 dB	5-470: 3,2 / 3,7 dB 470-862: 3,3 / 3,8 dB 950-2400: 4,0 / 5,0 dB
Screening factor	> 100 dB	> 100 dB	> 100 dB

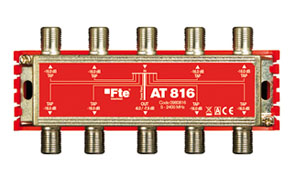

AT 816
